Distributed frequency inverter - Integrated machine

Distributed Frequency Inverter-Integrated Machine

The Distributed Frequency Inverter-Integrated Machine is an innovative electromechanical system designed for high-efficiency, precision control, and modular adaptability in industrial and energy applications. By embedding distributed frequency inverters directly into the machine architecture, this solution eliminates traditional centralized drive limitations, enabling localized real-time motor speed regulation, energy optimization, and seamless integration with automation networks.

Distributed frequency converter solution

Power:1.5 - 7.5 kW Three-phase 380V,three-phase 220V,single-phase 220V

1. IP65 high protection level,cast aluminum housing sturdy and durable;

2. Supports distributed installation,seamlessly integrates with the motor,saving power distribution space;

3. Built-in motor brake power supply (optional);

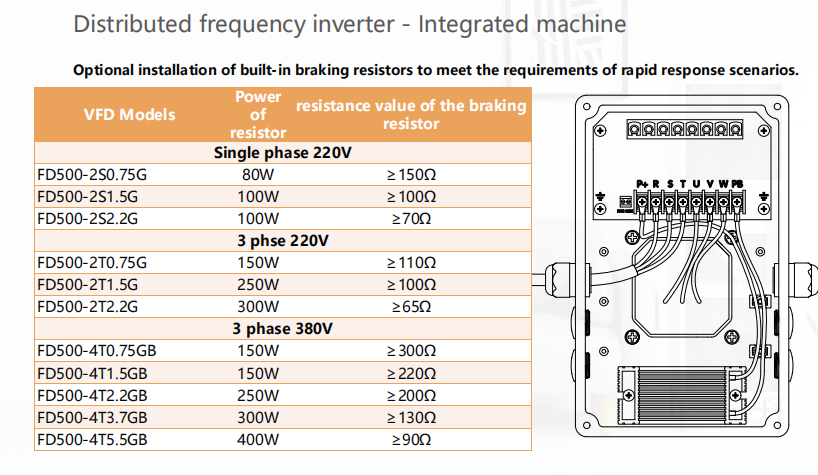

4. Built-in braking resistor (optional);

5. Standard motor cooling fan interface;

6. Supports PN,ASI protocols;

7. High power factor,long-life capacitor design scheme;

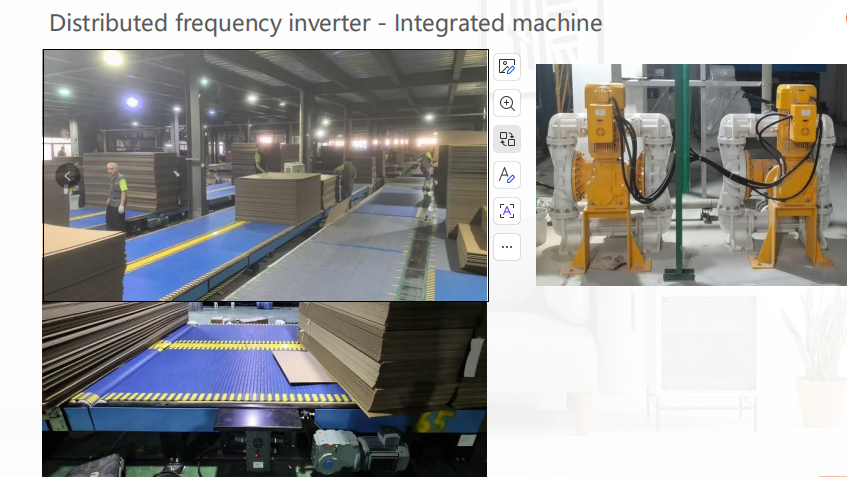

8. Wall-mounted installation and motor backpack installation are optional.Typical applications:Logistics equipment,intelligent warehousing, new energy diaphragm pumps,constant pressure water supply,etc.

Power:1.5 - 7.5 kW Three-phase 380V,three-phase 220V,single-phase 220V

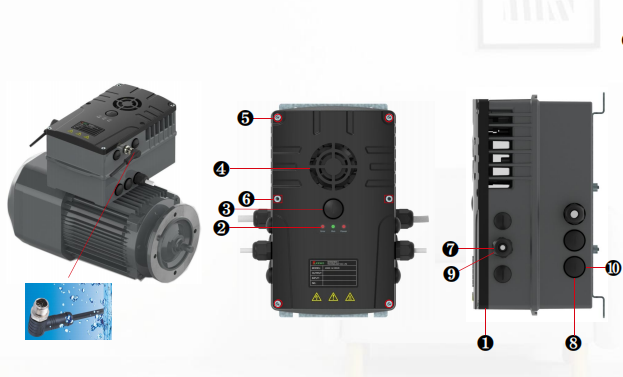

Component Details

❶ Face cover

❷ Status indicator

❸ Keyboard port

❹ Waterproof fan

❺ 4 long screws

❻ 2 short screws

❼ Control line outlet

❽ Main circuit outlet

❾ Optional control circuit plug

❿ Optional main circuit plug
