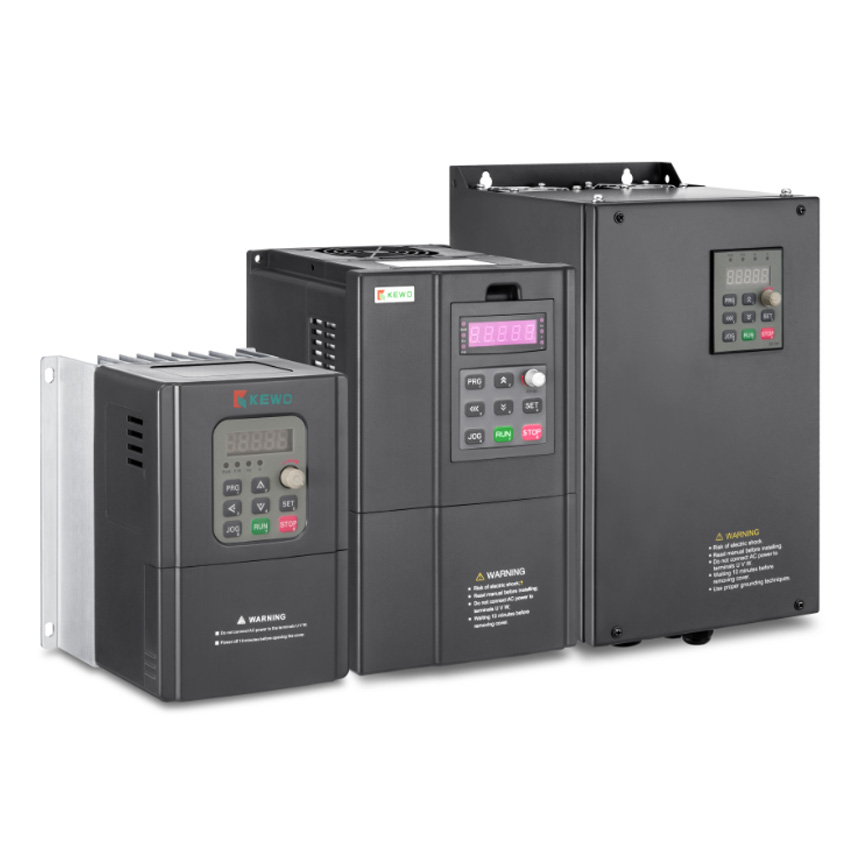

AD800S VFD for PMSM (permanent magnet synchronous motor)

AD800S is enhanced VFD of AD800 high performance, which tailed made for permanent magnet synchronous motor, shares the same hardware of Ad800 VFD’s.

It can use to drive (PMSM) permanent magnet synchronous motori in 2 control modes, close loop vector control with encoder feedback, sensorless vector control without encoder.


Share:
  • Feature
  • Specification
  • Model Selection
  • Wiring
  • Application
  • Download

● High performance flux vector control for PMSM
● Excellent quick response with vector control

● High starting torque even under low speed.

●Torque limit for machine safety protection

●Rapid current limit, up to 20 kinds protection function.

● Latest generation Infineon IGBT modules using


Single phase, 220V, 0.4kw to 7.5kw.

Three phase, 220V, 0.75kw to 75kw
Three phase, 380V/660V/1140V, 0.75 to 400kw

ItemsSpecification
Control modeControl modeSVC in open loopV/F controlClose loop vector control
Starting torque0.5Hz 180%0.5Hz 150%0.00Hz 180%
Speed adjust range1:1001:1001:1000
speed stabilizing

±0.02%
precision
Torque precisionNONO±5%
Motor typeGeneral induction motor,permanent magnet synchronous motor*
Functin designHighest frequencyGeneral vector control :400Hz  V/f control:4000Hz
frequency resolutionDigital setting: 0.01Hz  analog setting: maximum×0.025%
carrier frequency0.5K~16KHz, the carrier frequency can be adjust by temperature automatically
Frequency reference setting methodDigital of Control panel, analog AI1, AI2, potentiometer of control panel, UP/DN control, communication, PLC pulse frequency
Accel./decel. characteristicLinear curve and S curve accel. /decel. mode, range of time: 0.0 to 65000S.
V/F curve3 mode: linear, multiple points, N Power
V/F separation2 times separation: totally separation, half separation
DC brakingDC braking frequency: 0.0 to 300Hz, DC braking current: 0.0% to 100%
Braking unitBuilt in braking unit up to 15kw, optional is 18.5kw to 75kw, external built in for above 93kw.
Jog functionJob frequency range: 0.0 to 50.0Hz, the accel. and decel. time of Jog
Configuration PIDEasy to perform pressure, flow, temperature close loop control
PLC  multiple speedTo achieve 16 segment speed running through built in PLC or terminal control
Common Dc bus *Multiple inverters use one DC bus for energy balance.
Auto voltage regulation (AVR)Enable to keep output voltage constant when grid fluctuation
Over load tolerance capabilityG type model: 150% rated current for 60s, 180% rated current for 2s,
P type Model: 120% rated current for 60s, 150% rated current for 3s.
tall control when over current, over voltageCarry out limiting automation for running current, voltage to prevent over current, over voltage frequently
Fast current limit functionminimize the IGBT module broken to protect the inverter, maximum reduce the over current fault.
Torque limit and torque control"Excavator" characteristics , torque limit automatically during motor running. Torque control is available in close loop vector control mode.
featuresfriendly interfaceDisplay Hello when power on.
Multiple function key JOG buttonIt can set for Forward Jog, reverse Jog, forward/reverse switch
Timing control functionA total running time and total running time calculating
2 group motor parametersTo achieve two motor switching freely, control mode is selectable
Motor over heat protectionAccepting motor temperature sensor signal input via AI1 terminals.
Multiple kinds encoder *Compatible collector, difference, and rotary transformer Encoder.
Command sourceControl panel, control terminals, series communication, switch freely.
Frequency sourceDigital setting, analog current/voltage, pulse setting, serial communication, main and auxiliary combination.
Protection functionShort circuit detect after power on, input/output phase missing, over voltage, over current, under voltage, over heat, over load protection.
EnvironmentApplication siteIndoor, free of exposure to sunlight, no dusty, no corrosive, no inflammable gas, no oil and water vapor, and water dipping
AltitudeLower 1000m
environment temperature-10℃~+40℃, power derate for 40~50℃, rated current derated 1% for 1℃increasing.
humidityLess than 95%, no water condense.
storage-40~+70℃

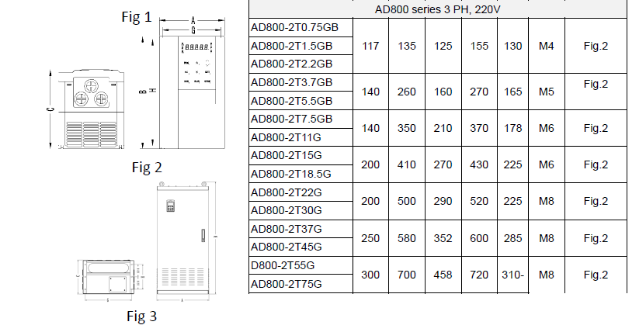

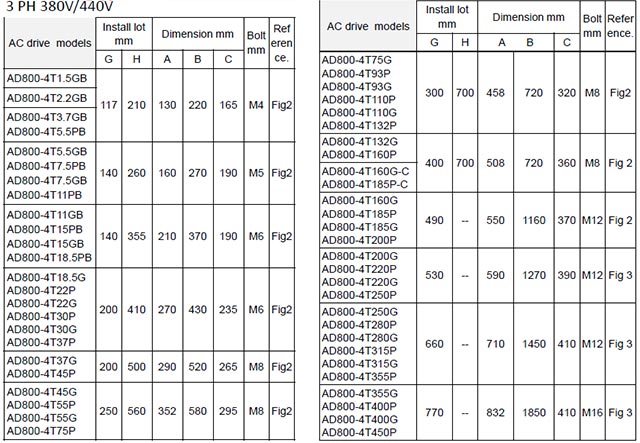

AD800 AC Drive models.


AD800S Inverter Data sheet.

AD800S VFD for PMSM (permanent magnet synchronous motor)

AD800S VFD for PMSM (permanent magnet synchronous motor)

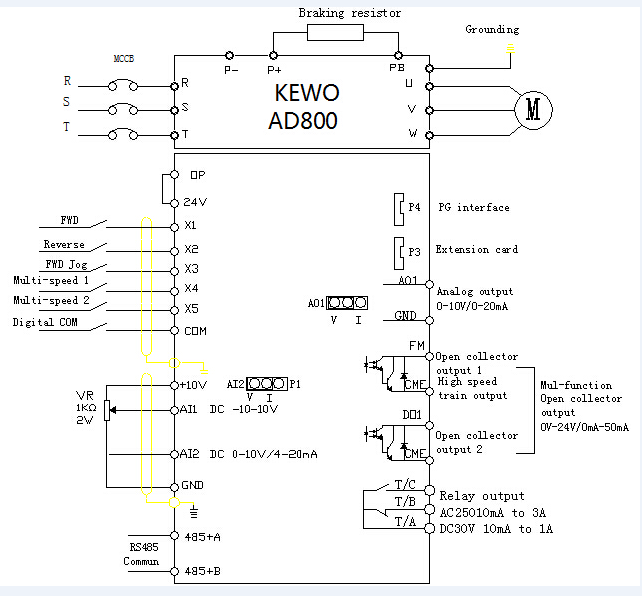

Wiring diagram of AD800.

Built in following functions terminals.

● It has 5 digital I/O input, compatible with sink and source way. (NPN /PNN)

● 2 Analog input, support -10V to 10V, 0-10V, 0/4 to 20mA.

● 1 Analog output ( 0-10V/0-20mA cab be selected)

● 2 collector output ( FM and CME support the high pulse output).

● 1 relay output. ( if need two relays please built external card)

● Rs485 communication card.( 485+, 485-)

● Extension card is available. ( 4 digital terminals, 24V power supply, OP ( external power supply terminal,1 analog output , and 1 relay output )

AD800S VFD for PMSM (permanent magnet synchronous motor)

AD series high performance inverter better being used in various application with high accuracy speed control quick torque response and starting torque.

Textile: P-jump Winders, Extruders, Tufting Machines, spinning machine

Packaging: In-feed / Out-feed, Case Packing, Bottling & Canning, Carton Manufacturing. Beverage packing

Plastics & Rubber: Extruders, Blow Molding, Thermoforming, Injection Molding.

Pulp & Paper: Paper Machines, Debarkers, Winders, Saw Mills

Converting: Coaters ,Laminators ,Slitters, Flying Cutters

Air Handling: Supply and Return Fans ,Cooling Towers ,Spray Booths ,Dryers

Oil & Gas: Top Drives ,Pumpjacks, Down-hole Pumping Centrifuges

Material Handling: Conveyors, Sortation, Palletizers, Coil Winding

Metals: Stamping / Punch Press, Wind /Unwind, Cut-to-length,cable drawing.

Wire Draw

Construction Materials: Kilns, Planers, Flying Cutoff, Mixers

Laundry: Dryers, Extractors, Folders, Washers

Food & Beverage: Conveyors, Fillers, Mixers, Centrifuges

Automotive: Stamping, Test Stands, Indexing, Metal Cutting

Construction crane, hoist, lifting
