Function features
Energy saving: up to 60% energy saving compare to traditional fixed pump system. 75% is possible be achieved according to difference injection condition.
Lower oil temperature: reduce 5-10 degrees
High repeated accuracy: To achieve high accuracy flow and pressure control
Long pressure holding time: It is favorable for big wall thickness.
Quick response: frequency response up to 50ms.
Enhanced features:
1. Design the signal correction algorithm and match to work high performance under low speed characteristic to solve the creep problem of IMM. Because his given signal reference is nonlinearity characteristic.
2. Due to switching frequently in flow control mode, so we adopt fuzzy control to realize smooth switch of flow and pressure control.
3. Adopt flow control with pressure compensation to eliminate effect of flow estimate accuracy.
4. Adopt noise control method to reduce the fluctuation of output pressure of oil pump.
5. Monitoring temperature of motor and drive in whole journey, parameters adjusting in real time

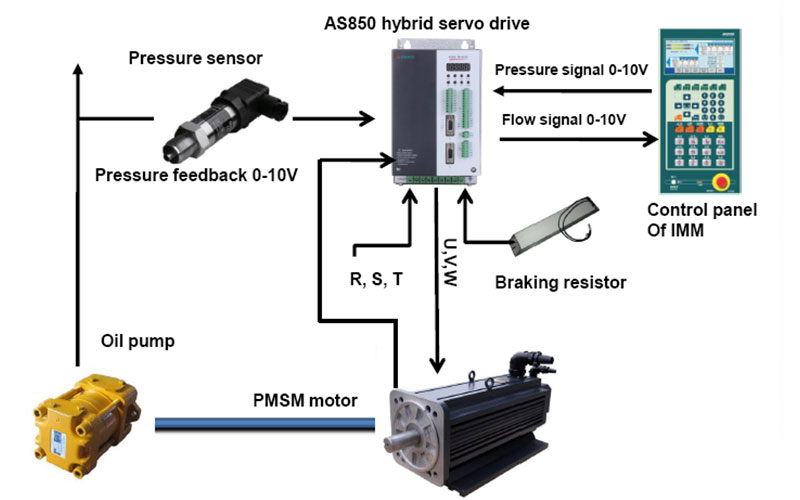

System connection for energy saving with hybrid servo drive

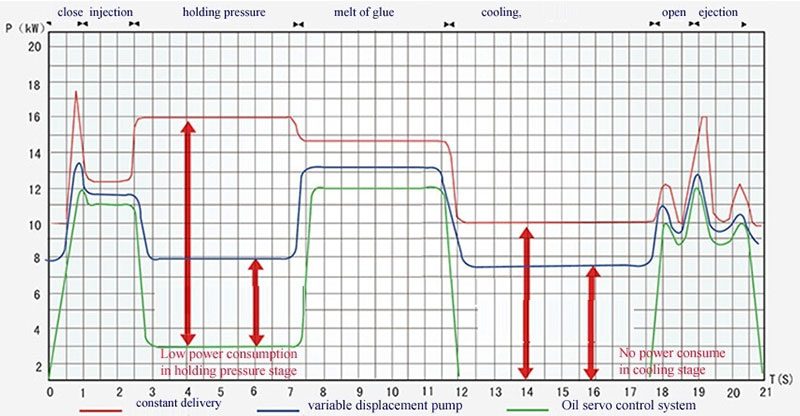

Energy saving comparison diagram
The injection molding machine power consume take up 75% of system total in traditional constant flow of IMM.
It need difference flow and pressure during difference working stage of IMM such as mold close, injection, pressure holding, molding open. When the required over the setting pressure and flow, the flow and pressure will be adjusted by relief valve or proportional valve. this process call high pressure throttling. Up to 40-75% energy wasting during this stage.

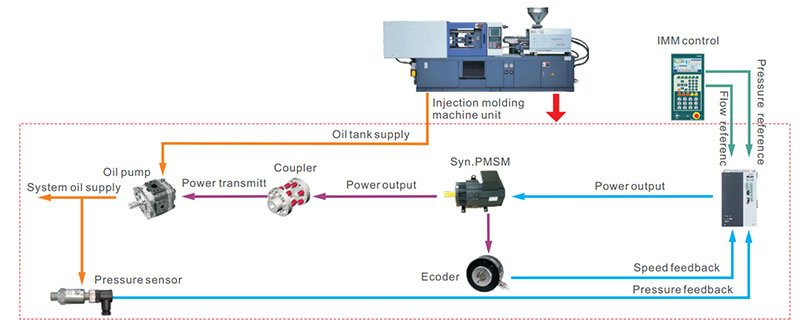

System connection diagram

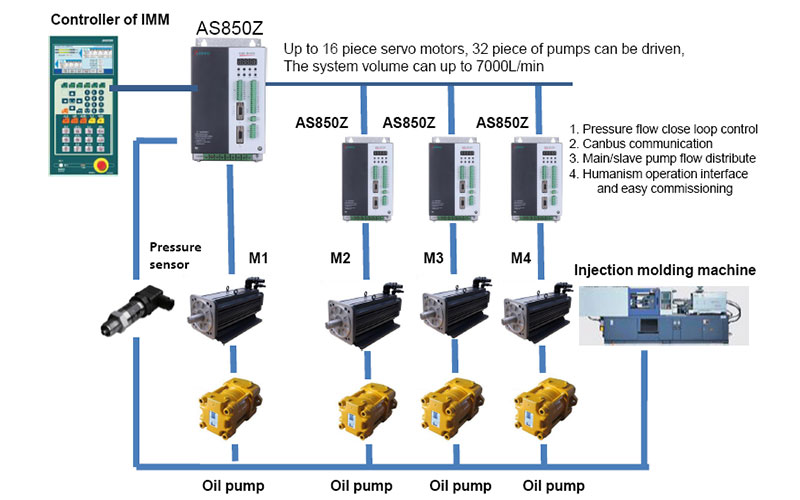

Multiple pumps combine flow control diagram

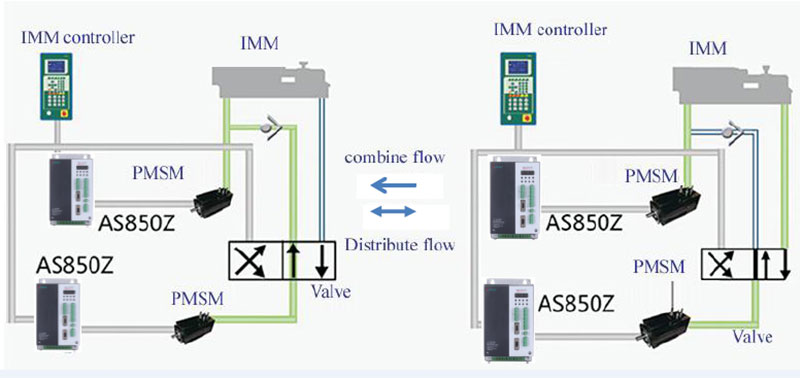

Multiple pumps compound control compound control
Oil servo drive system performance.

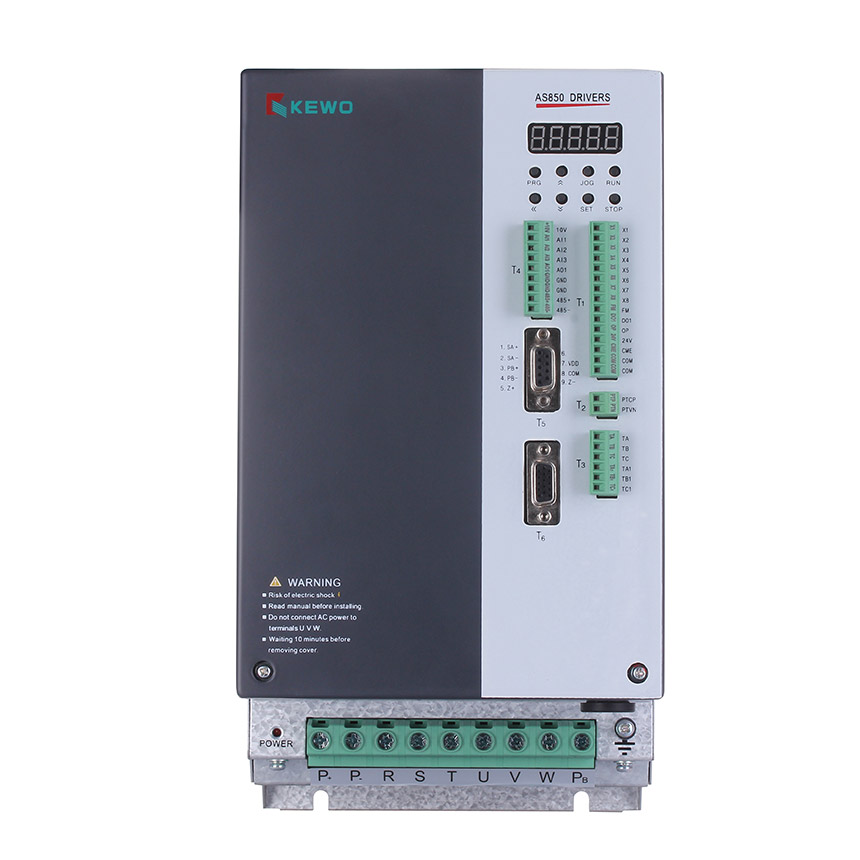

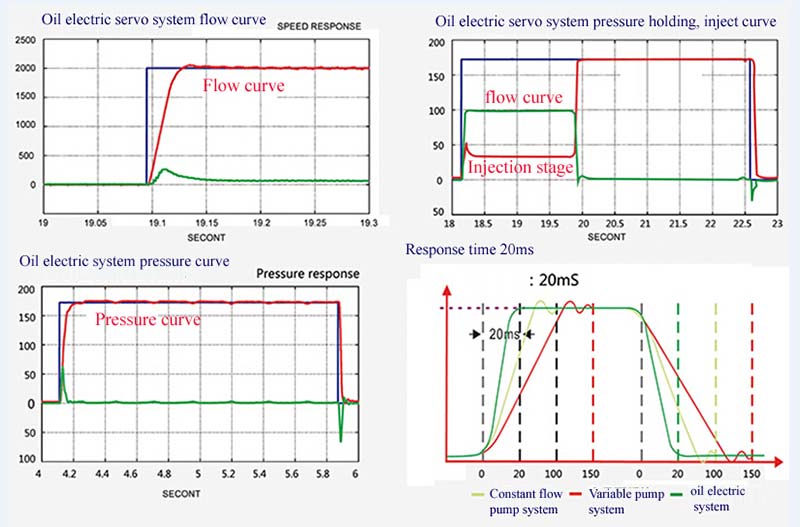

System curve of Kewo AD850Z servo drive in IMM application
| Items | Description | |
| Input | Rated voltage range | 3 phase 380V±15% |
| rated frequency | 50/60Hz | |
| Output | rated voltage range | output 0 to 380V |
| rated frequency | 0.00 to 400.00Hz | |
| mounting | wall mounting with IP20 | |
| Cooling method | force cooling | |
| Encoder | Rotary transformer | |
| Pressure reference | External analog signal (0-10V) | |
| Flow reference | External analog signal (0-10V) | |
| pressure feedback | External analgo ( 0-10V or 4-20mA) | |
| Control input | 9 channel insulation input | |
| control output | 3 channel insulation input | |
| analog output | 1 channel output | |
| Protection function | Phase missing input, under voltage input, over voltage input, over current, overload of drive, overheat of motor, external interference encoder fault. | |
| Display | current output display, current rotation, current output current, output voltage, fault alarm, operation parameters, running status. | |
| using place | Indoor, no sunlight exposure, no dusty, corrosive atmosphere, no flammable gas, no water dip and not salt. | |
| Environment temperature | "-10 ℃ to 50℃ | |
| Environment humidity | 90% below( no condensation) | |
| shock intensive | 0.5g( acceleration) below | |
| altitude | 1000 below. | |
| Items | Description | |
| Input | Rated voltage range | 3 phase 380V±15% |
| rated frequency | 50/60Hz | |
| Output | rated voltafe range | output 0 to 380V |
| rated frequency | 0.00 to 400.00Hz | |
| mounting | wall mounting with IP20 | |
| Cool method | force cooling, fans control is available | |
| Encoder | Rotary transformer | |
| Pressure reference | External analog signal (0-10V) | |
| Flow reference | External analog signal (0-10V) | |
| pressure feedback | External analog ( 0-10V or 4-20mA) | |
| Control input | 9 channel insulation input | |
| control output | 3 channel insulation input | |
| analog output | 1 channel output | |
| Protection function | Phase missing input, under voltage input, over voltage input, over current, overload of drive, overheat of motor, external interference, encoder fault. | |
| Display | current output display, current rotation, current output current, output voltage, fault alarm, operation parameters, running status. | |
| using place | Indoor, no sunlight exposure, no dusty, corrosive atmosphere, no flammable gas, no water dip and not salt. | |
| Environment temperature | "-10 ℃ to 50℃ | |
| Environment humidity | 90% below( no condensation) | |
| shock intensive | 0.5g( acceleration) below | |
| altitude | 1000 below. | |
| Servo drive model | Input voltage | Rated output power (KW) | rated input power (A) | Rated output current (A) | braking resistor power selecting | braking resistor (Ω) | Braking unit |
| AS850Z4T017 | 3 phase 380V | 7.5 | 20.5 | 17 | 1000 | >90 | built in |
| AS850Z4T025 | 11 | 26 | 25 | 1000 | >40 | ||
| AS850Z4T032 | 15 | 35 | 32 | 1000 | >32 | ||
| AS850Z4T037 | 18.5 | 38.5 | 37 | 2500 | >32 | ||
| AS850Z4T45 | 22 | 46.5 | 45 | 2500 | >16 | external connect | |
| AS850Z4T60 | 30 | 62 | 60 | 2500 | >16 | ||
| AS850Z4T75 | 37 | 76 | 75 | 5000 | >8 | ||
| AS850Z4T91 | 45 | 92 | 91 | 5000 | >8 | ||
| AS850Z4T112 | 55 | 113 | 110 | 5000 | >8 | ||
| AS850Z4T150 | 75 | 157 | 150 | 5000 | >8 | ||
| AS850Z4T175 | 93 | 180 | 175 | 5000*2 | >8*2 | ||
| AS850Z4T210 | 110 | 214 | 210 | 5000*2 | >8*2 | ||
| AS850Z4T250 | 132 | 256 | 250 | 5000*2 | >8*2 | ||
| AS850Z4T300 | 160 | 307 | 300 | 5000*2 | >8*2 |

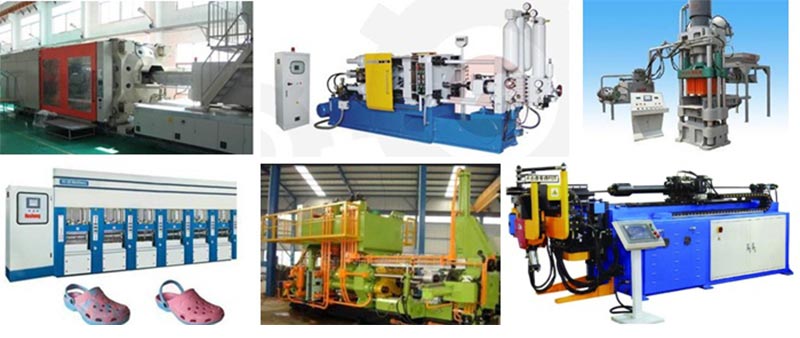

1. Injection molding machine
2. pressure die casting machine
3. brick machine
4. shoes machinery
5. Pressing machine
6. Aluminum extrusion machine
7. Hydraulic, CNC punching machine
8. Civil engineering machine
9. Other hydraulic machinery
