DC Voltage booster-low voltage input and high voltage output

It is use to booster low voltage input to high voltage to meet solar pumps system application which need high voltage using.

For example, For 1/3 phase 220VAC pumps, it should be request Vmp ( working voltage) is 310VDC, Voc ( open loop voltage) is 350VDC.

For 3 phase 380VAC pumps, it should be request Vmp 540VDC, and Voc 620VDC.

To order to get high voltage output from solar panels, we always connect solar panels in serial.

for 37voc solar panels, we need do 10 pcs solar panels connection in serial to get 370VDC, and need do 17 pcs solar panels connection in serial to get 629VDC.

And it will cause big investment for small power solar pumps system, and also make it difficult to promote this very good green energy solar pump system solution for people who need more water but less of grid power.


Share:
  • Feature
  • Specification
  • Model Selection
  • Wiring
  • Application
  • Download

1. LV40-70 design for "L" (3phase 220Vac) inverter, input voltage range :40 to 70Vdc.

Output will be 240V to 420VDC.

2. LV60-90 design for"L" (3phase 220Vac) inverter, input voltage range :60 to 90Vdc.

Output will be 300VDC to 450VDC.

3. LV60-90 design for"H" (3phase 380Vac) inverter, input voltage range :60 to 90Vdc.

Output will be 480VDC to 720VDC.


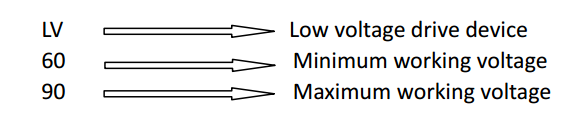

LV40-70-2T(40 to 70VDC input, 240V to 420VDC output)

LV60-90-2T (60-90VDC input, 300VDC to 450VDC output )

LV60-90-4T ( 60-90VDC input, 480V to 720VDC output)


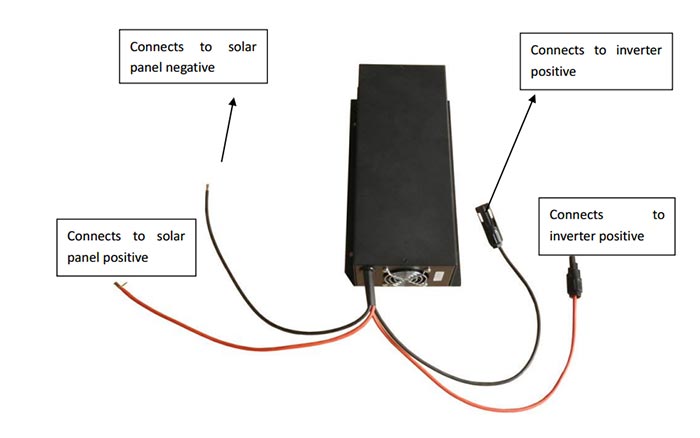

1. Wiring must be carried out by qualified electrical professionals, or it may cause electric shock or fire.

2. Before wiring, make sure the input power has been cut off, otherwise may cause electric shock or fire.

3. The PV array selection should be reasonable, otherwise it may damage the device.

4. Do not change the wiring in the power, otherwise there is a risk of electric shock.


DC Voltage booster-low voltage input and high voltage output


DC Voltage booster-low voltage input and high voltage output

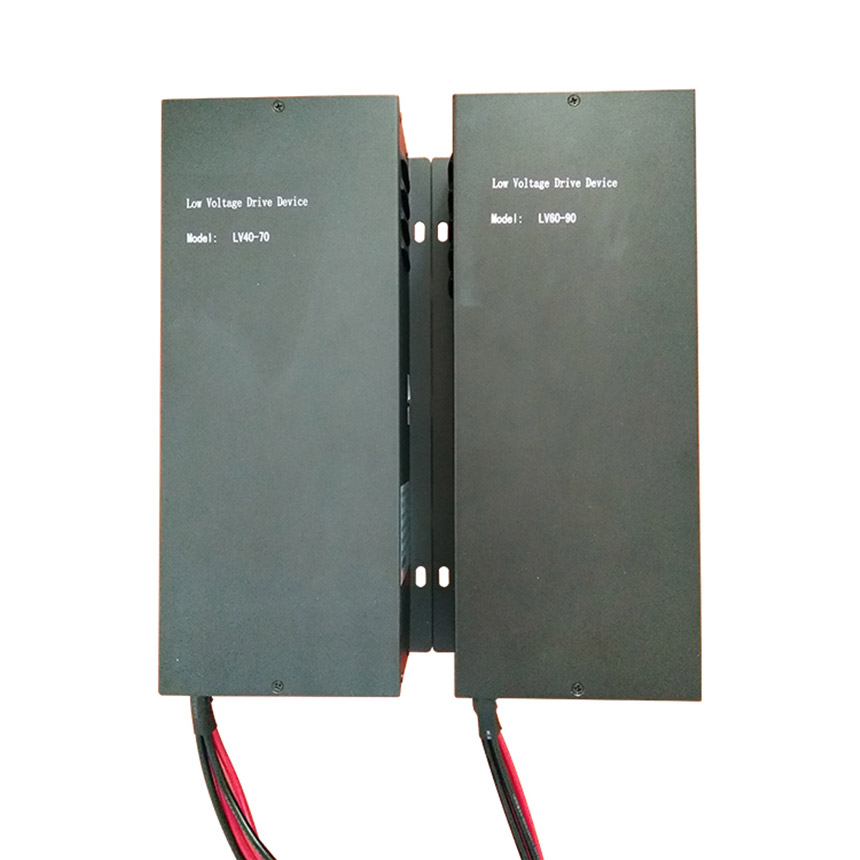

We manufacture low voltage boost device (Model: LV60-90) to convert low DC voltage to high DC voltage to meet the voltage of solar pump inverter. Meantime, this new system avoids the danger of high DC voltage from solar panels.

DC Voltage booster-low voltage input and high voltage output

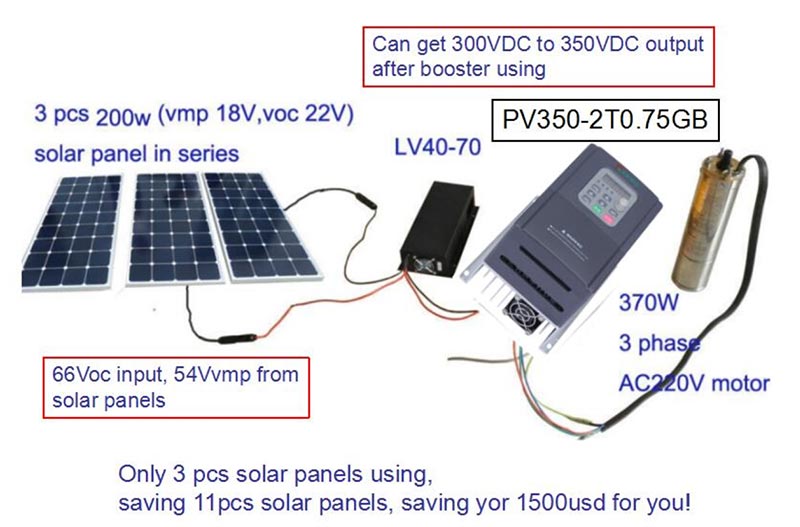

66VDC input, output 350VDC, for 3 phase 220VAC pumps


DC Voltage booster-low voltage input and high voltage output

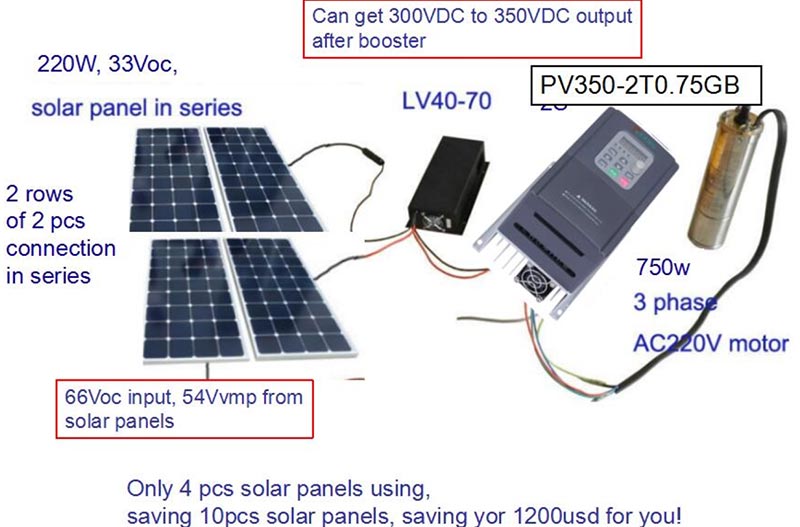

66VDC input, output 350VDC, for 3 phase 220VAC pumps


DC Voltage booster-low voltage input and high voltage output

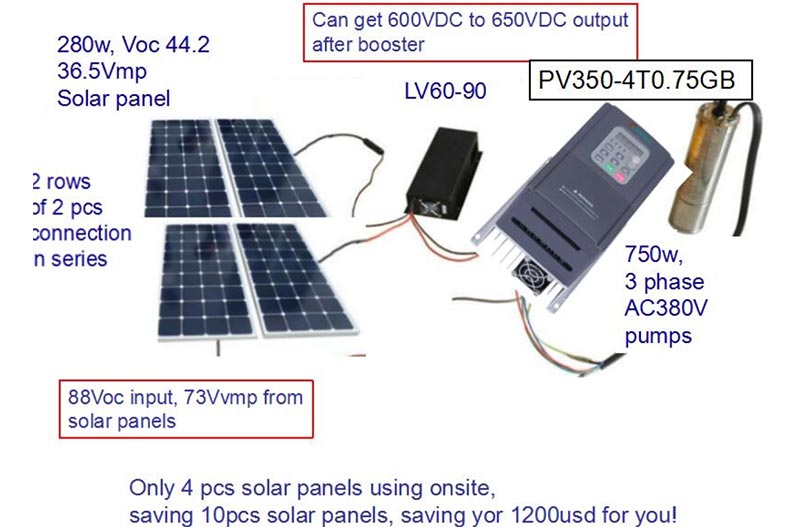

88VDC input, output 620VDC, for 3 phase 380VAC pumps
