IP65 solar pump inverter

Power range:

3-phase 380～480V / 0.75～11KW

1/3-phase 200～240V / 0.75～2.2KW

Features:

Simple debugging and easy using.

Simple installation with high IP protection.

Up to IP55/IP65 Protection level, good for outdoor independent installation

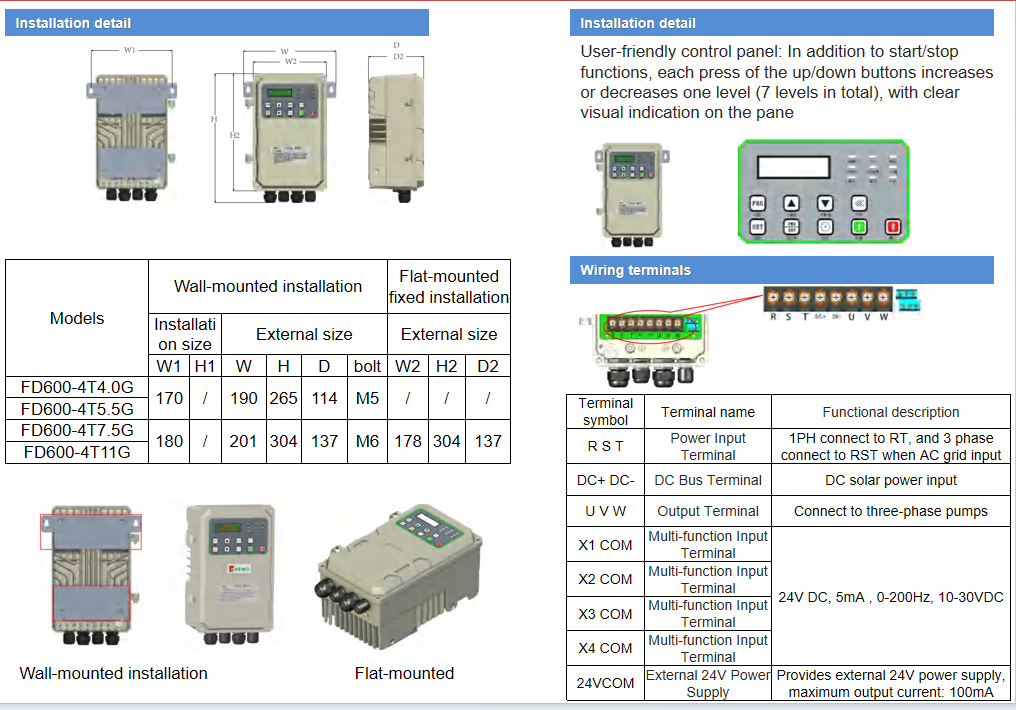

Simple wiring: User-friendly wiring design, users only need to connect according to the wiring instructions

  AC/DC manual switchover by built in a switch over

(model -K)

High flexibility: it can be use for VFD when disable the solar function

 MPPT function, fast speed drop when sunlight is weak

kinds of pumps protection

Application model:

Single phase: PV110-2S(0.75～2.2)G

Three-phase: PV110-2T(0.75～2.2)G

                        FI100-4T(0.75～4.0)G

production features

High Protection: With an IP66 protection rating, it can be installed outdoors directly.

High Compatibility: Compatible with both permanent magnet synchronous motors and asynchronous motors.

Easy Installation: Integrated design of the control cabinet and frequency converter eliminates the need for secondary installation.

Low Maintenance: Maintenance-free overall design.

User-Friendly Operation: Start/stop control with 7-speed adjustment via up/down keys.

Quiet and Comfortable: Carrier frequency up to 16kHz ensures natural, noise-free operation.

Smooth Performance: Stable operation delivers the comfort of natural wind.

No Tuning Required: Supports tuning-free operation for synchronous motors.

Comprehensive Protection: Up to 33 protection features, including anti-collision, overcurrent, overvoltage, overload, and ground fault protection.
