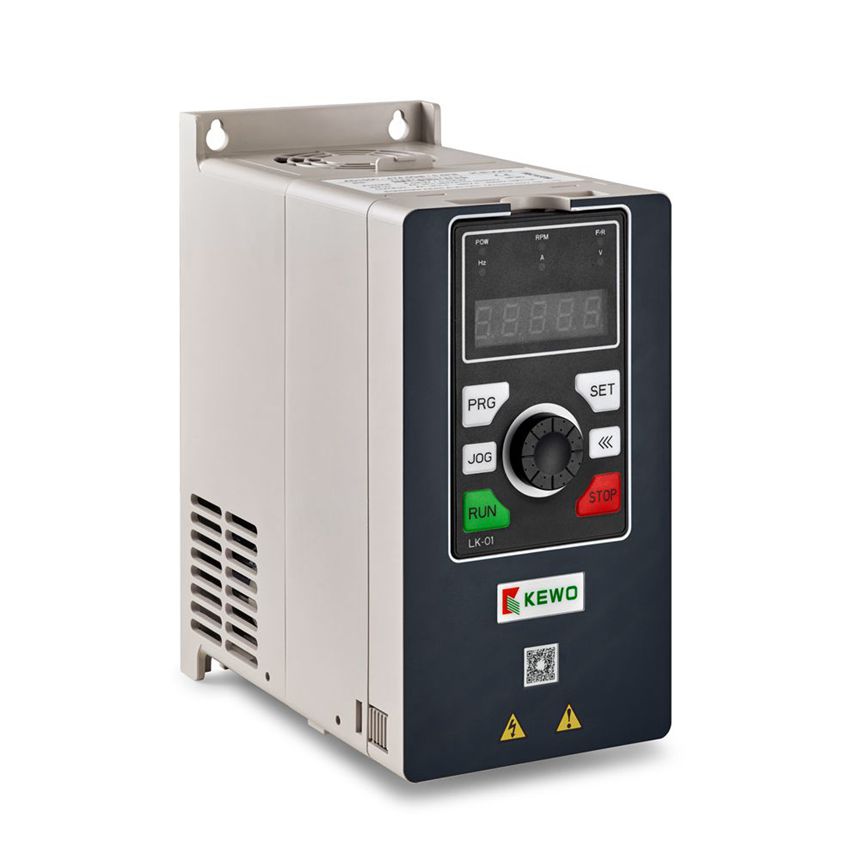

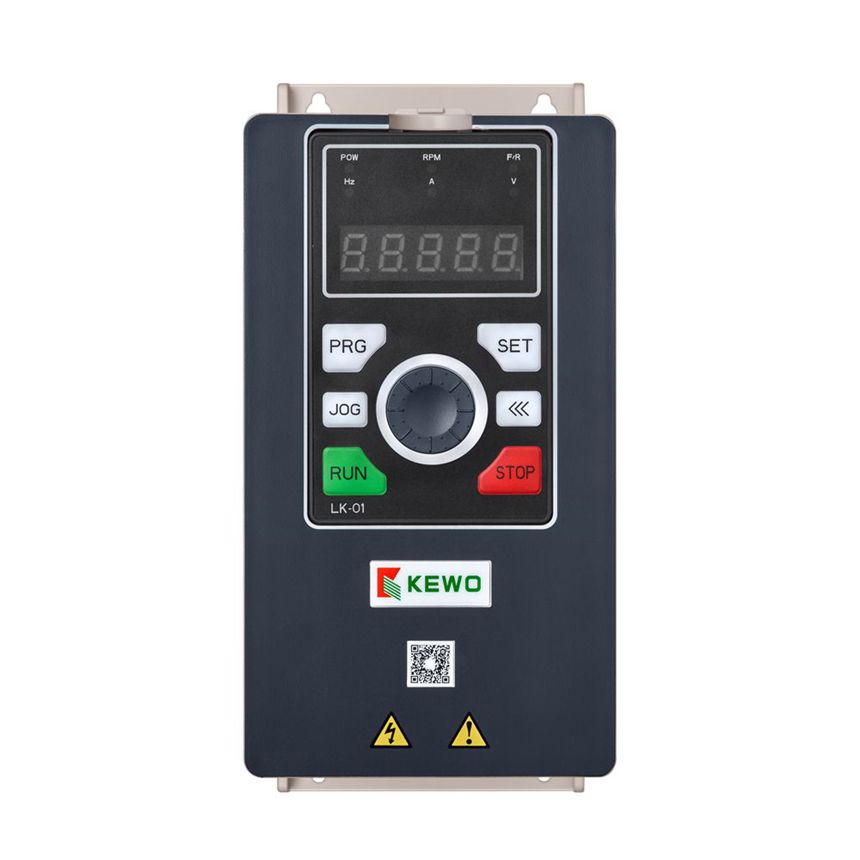

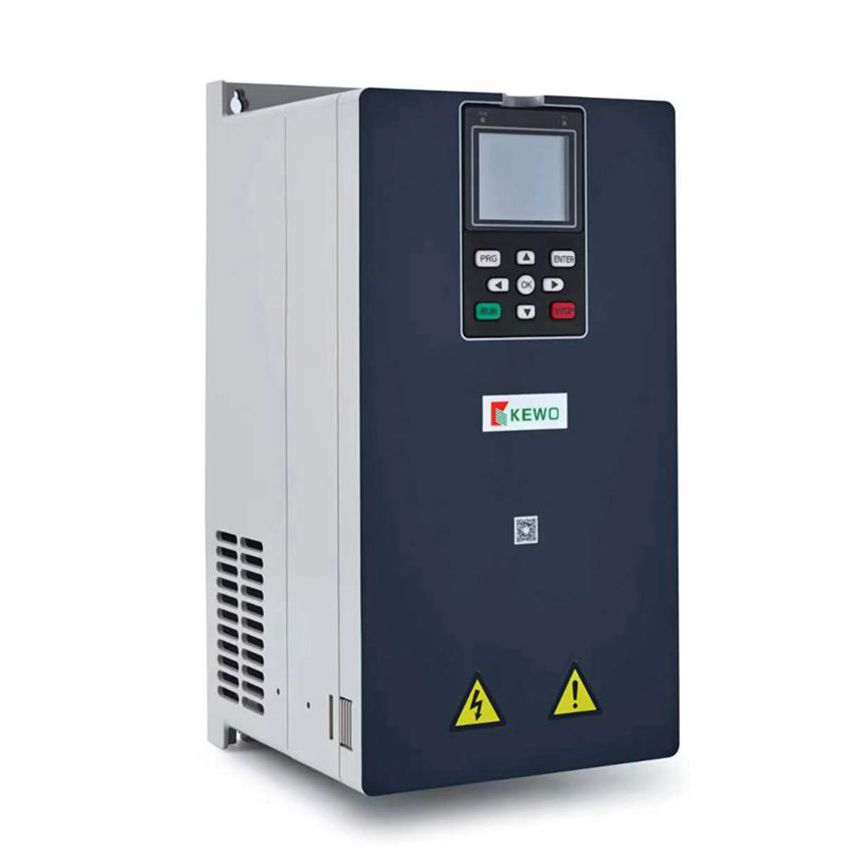

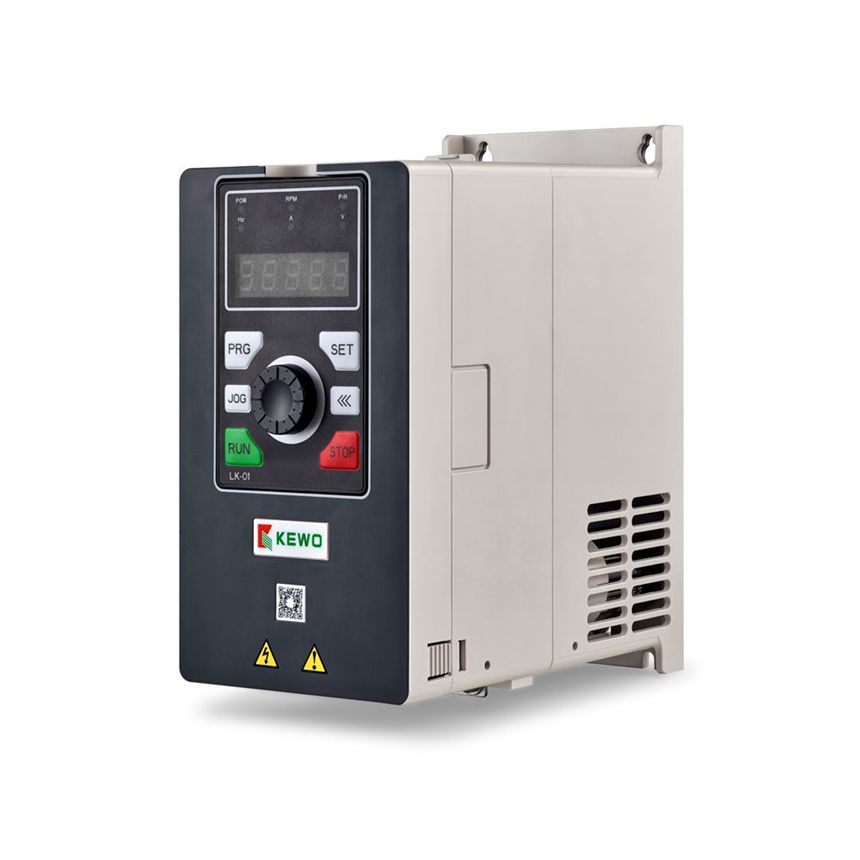

PV1000 New Design MPPT Solar Water Pump Inverter

KEWO new design PV1000 MPPT solar pump Inverter

150VDC-450VDC, 220VAC input. 1/3phase 220VAC output.

1.5KW to 55KW

350VDC-800VDC, 380VAC input, 3phase 380V/440/480VAC output. Max 900VDC.

2.2KW to 160KW.

Share:
  • Feature
  • Specification
  • Model Selection
  • Wiring
  • Application
  • Download

KEWO New design PV300 PV1000 MPPT solar pump Inverter.

1) Drives well all kind of water pump in solar pumping system, AM and PMSM pump both.

2) Run stable.

3) 99% MPPT eiiciency.

4) Auto detect working DC voltage.

5) Solar DC and Grid AC, Generator AC input at same time, used as Hybrid Inverter, run all day.

6) Bulid in AUTO Sleep and Wake up function.

7) Dry run protection, full water tank detect.

8) All kind of protections like Over Under voltage, over current, phase loss etc.

9) Low stop frequency protection.

10) Strong lightning protection.

150VDC-450VDC, 220VAC input. 1/3phase 220VAC output.

1.5KW to 55KW

350VDC-800VDC, 380VAC input, 3phase 380V/440/480VAC output. Max 900VDC.

2.2KW to 160KW.


PV300 PV1000 solar pump inverter model list
SNModelsRate currentOutput voltage ( 3PH VAC)Applicable for pumpsPacking sizeMPPT voltage (VDC)GWKgs
2S series : 150 to 450 VDC or 220VAC input, Vmp 310VDC, 372VDC
1PV300-2S0.75GB4A0 – 220V0.75KW215*170*190260 to 3551.5
2PV300-2S1.5GB7A0 -220V1.5KW215*170*190260 to 3551.5
3PV300-2S2.2GB10A0 -220V2.2kw215*170*190260 to 3551.5
4PV1000-2T3.7G16A0 -220V3.7kw280*180*215260 to 3554.0
5PV1000-2TXXGB**0-220V<55kwNo-standard260 to 355**
4T series, 350 to 800 VDC or 380VAC, Vmp540VDC, Voc 648VDC. Max 900VDC
6PV300-4T0.75GB2.5A0-440V0.75KW215*170*190486 to 6501.5
7PV300-4T1.5GB3.7A0-440V1.5KW215*170*190486 to 6501.5
8PV300-4T2.2GB5A0-440V2.2KW215*170*190486 to 6501.5
9PV1000-4T3.7GB10A0-440V3.7KW215*170*190486 to 6503
10PV1000-4T5.5GB13A0-440V5.5KW320*215*250486 to 6504.3
11PV1000-4T7.5GB17A0-440V7.5KW320*215*250486 to 6504.5
12PV1000-4T11GB25A0-440V11KW390*275*285486 to 6506.5
13PV1000-4T15GB32A0-440V15KW390*275*285486 to 6506.6
14PV1000-4T18.5GB38A0-440V18.5KW445*205*315486 to 65012
15PV1000-4T22GB45A0-440V22KW445*205*315486 to 65012
16PV1000-4T30G60A0-440V30KW545*395*370486 to 65016
17PV1000-4T37G75A0-440V37KW660*420*415486 to 65016
18PV1000-4T45G90A0-440V45KW660*420*415486 to 65027
19PV1000-4T55G110A0-440V55KW700*480*410486 to 65035
20PV1000-4T75G150A0-440V75KW700*480*410486 to 65035
21PV1000-4T93G170A0-440V93KW700*480*490486 to 65053
22PV1000-4T110G210A0-440V110KW700*480*490486 to 65056
23PV1000-4T132G260A0-440V132KW780*540*510486 to 65071
24PV1000-4T160G300A0-440V160KW780*540*510486 to 65072

* If need Maximum 900vdc input, please let us know before ordering.
