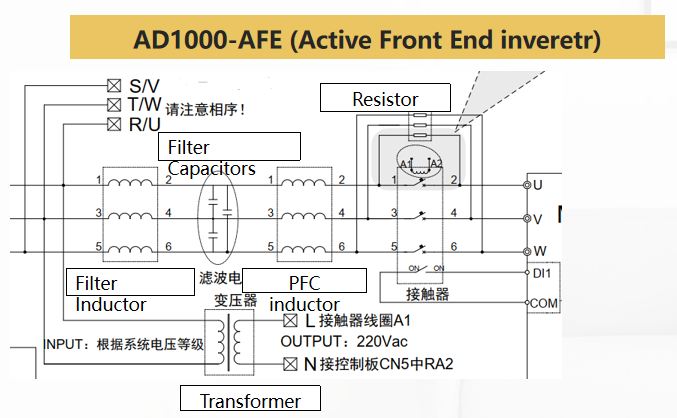

AD1000 Energy Feedback Unit (AFE)

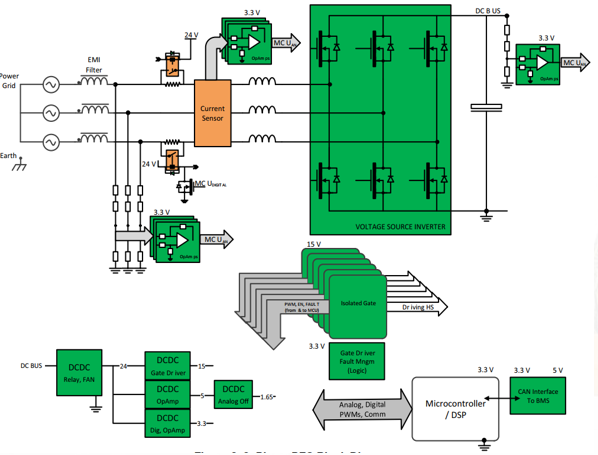

Active Power Factor Correction:

Principle: Use a switching converter to modulate distorted waves to shape them into sine waves.

Features: Active power factor correction is considered the best method of power factor correction, but it increases the complexity of the design.

The power section uses a SiC solution.

1. It can achieve a higher switching frequency;

2. It can achieve higher efficiency; 3. It can effectively reduce the overall size and cost of passive components; 4. It is suitable for a wide input voltage range; The project is in the preliminary research and design stage. 5.5~37KW
