Air Conditioning and Refrigeration Industry - Plate Type Inverter

Air Conditioning and Refrigeration Industry - Plate Type Inverter

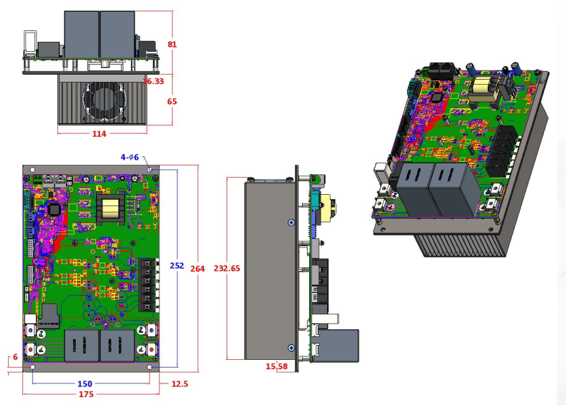

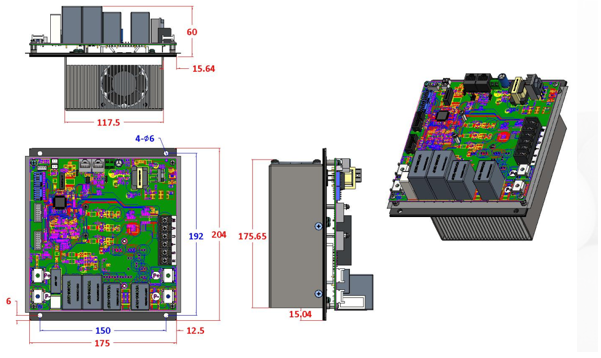

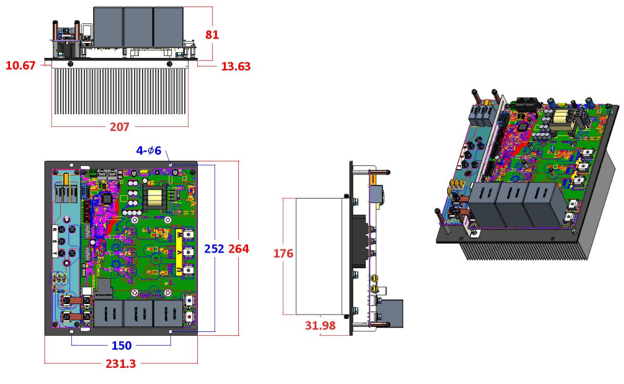

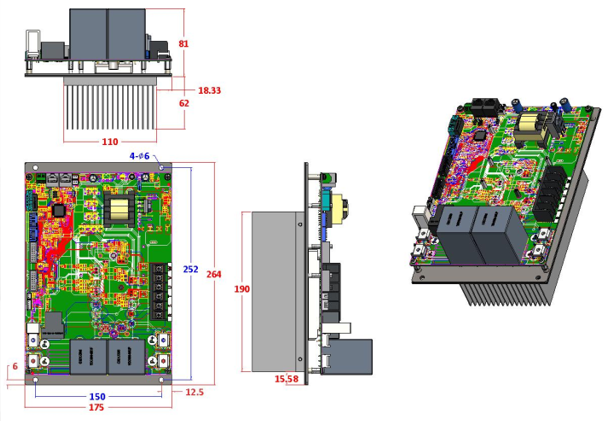

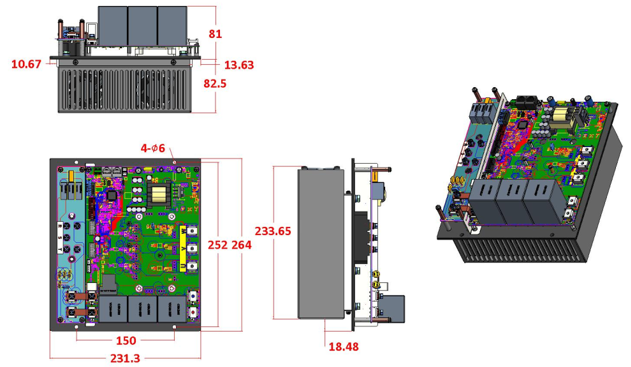

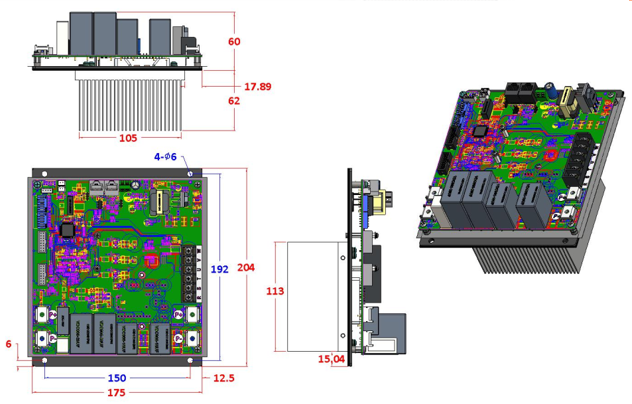

Plate-type multi-transmission frequency converter solution

Power: 0.75~30kW, Three-phase 380V

1. High-performance permanent magnet synchronous motor with SVC and VVC+good algorithms, strong robustness;

2. Five-segment or seven-segment wave generation available, small motor resonance, low noise;

3. TI 32-bit high-speed DSP main control chip;

4. Air-cooled and liquid-cooled models to meet different on-site application requirements;

5. Long-life film capacitor design;

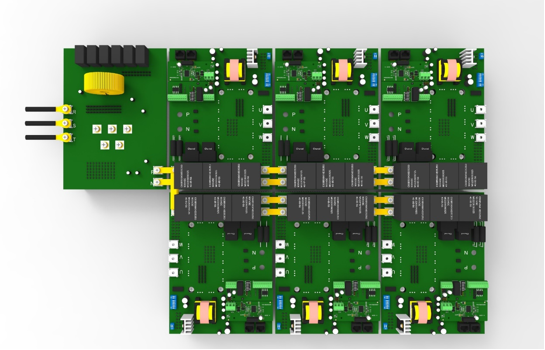

6. Can share one PFC module;

7. Two modes available: single machine and multi-machine;

8. Supports optional process card;
