● Power Range: SD350: 220V/380V 0.75-7.5GB; SD800: 380V 0.75-110G
● Input Voltage: 220VAC / 150~ 400VDC / 380VAC / 250 ~ 800VDC
● Built-in PID: Facilitates closed-loop control of pressure, flow, temperature, etc.
● PLC Multi-Speed: Up to 16-speed operation can be achieved via built-in PLC or control terminals
● Motor Types: AC Asynchronous Motor, AC Permanent Magnet Synchronous Motor (SD800S)
● Input Terminals: 5-channel multi-function digital terminal input (X1~X5)
● Output Terminals: External 10V/24VDC power supply
● Multiple Encoders: Supports encoders such as collector, differential, and resolver
● V/F Curves: Three modes: Linear, Multi-point, and Nth Power
● V/F Separation: Two modes: Full Separation and Half Separation
● IP55 ingress protection rating, suitable for various harsh environments
● Large starting torque, with 200% rated starting capability
● Compact structure and small size; all-metal housing offers better durability and heat dissipation performance
● Fast response to overcurrent and overvoltage suppression
● Optional switch-mode power supply (SMPS)
● Fully sealed structure, providing water resistance, dust resistance, and shock resistance
● Adopts double-ball bearing, waterproof, and high-speed cooling fans
● Supports simultaneous display of frequency and current; the control panel is available as a standard option

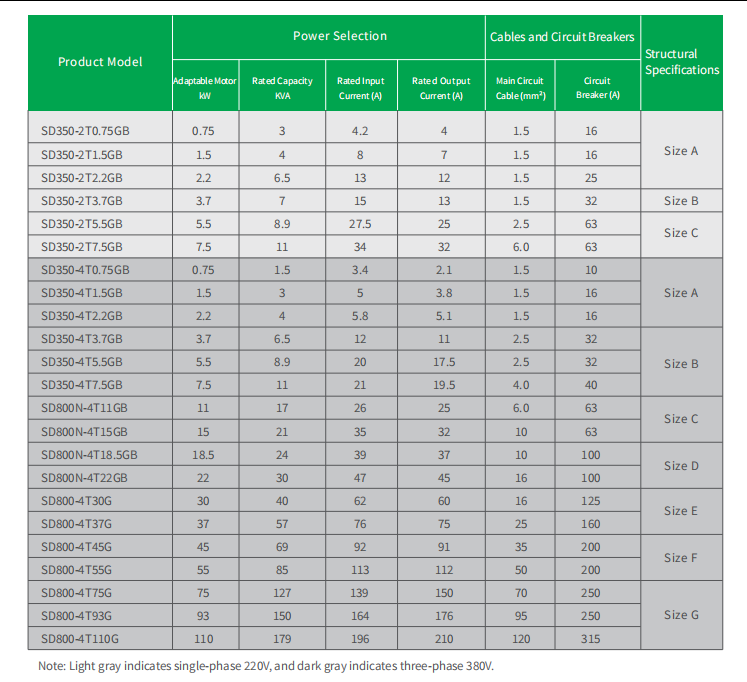

Product Model
